PRODUCT DESCRIPTION

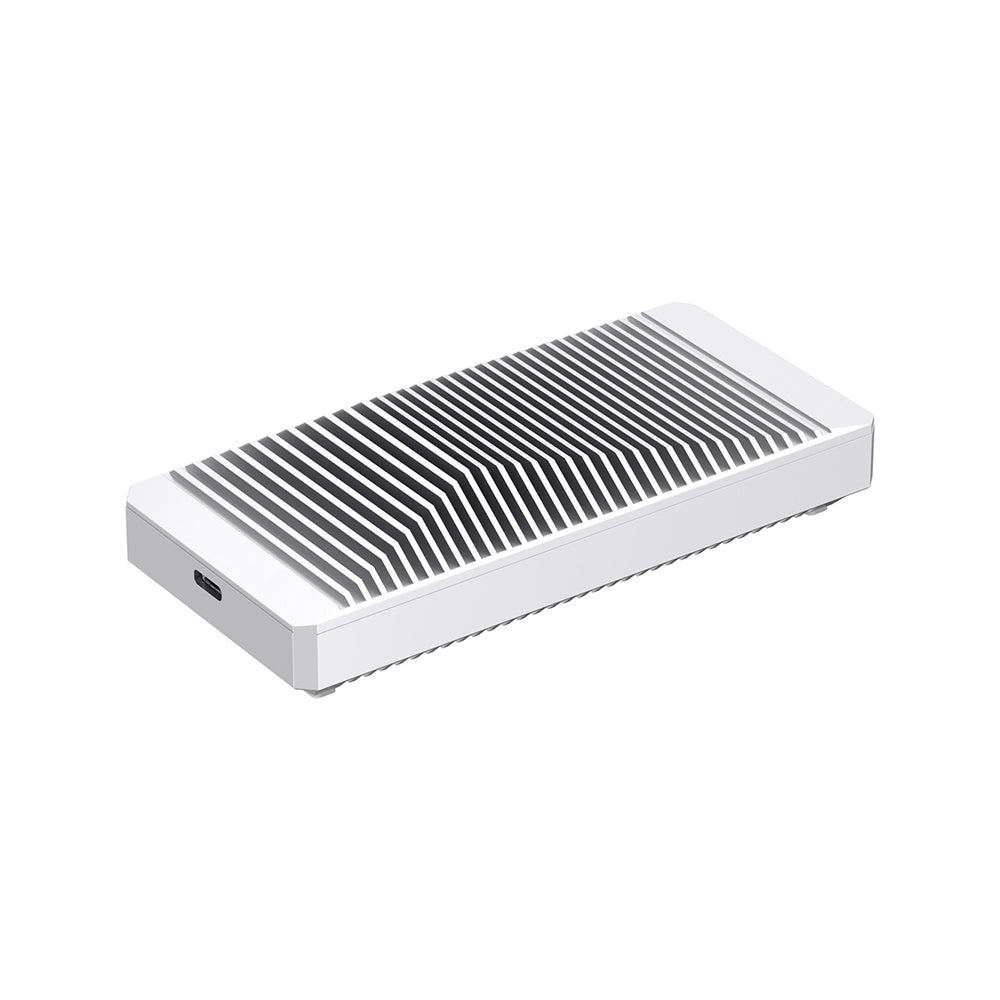

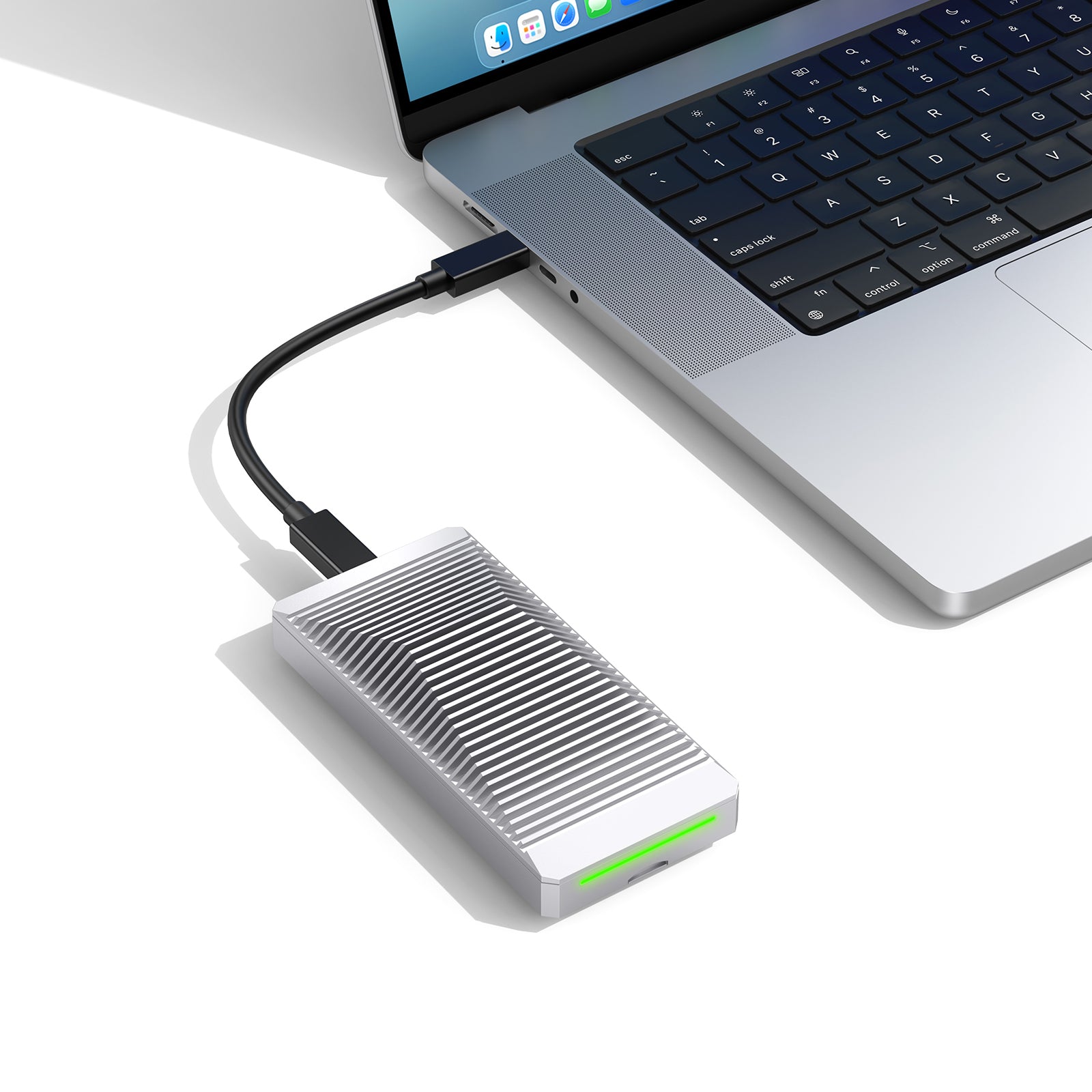

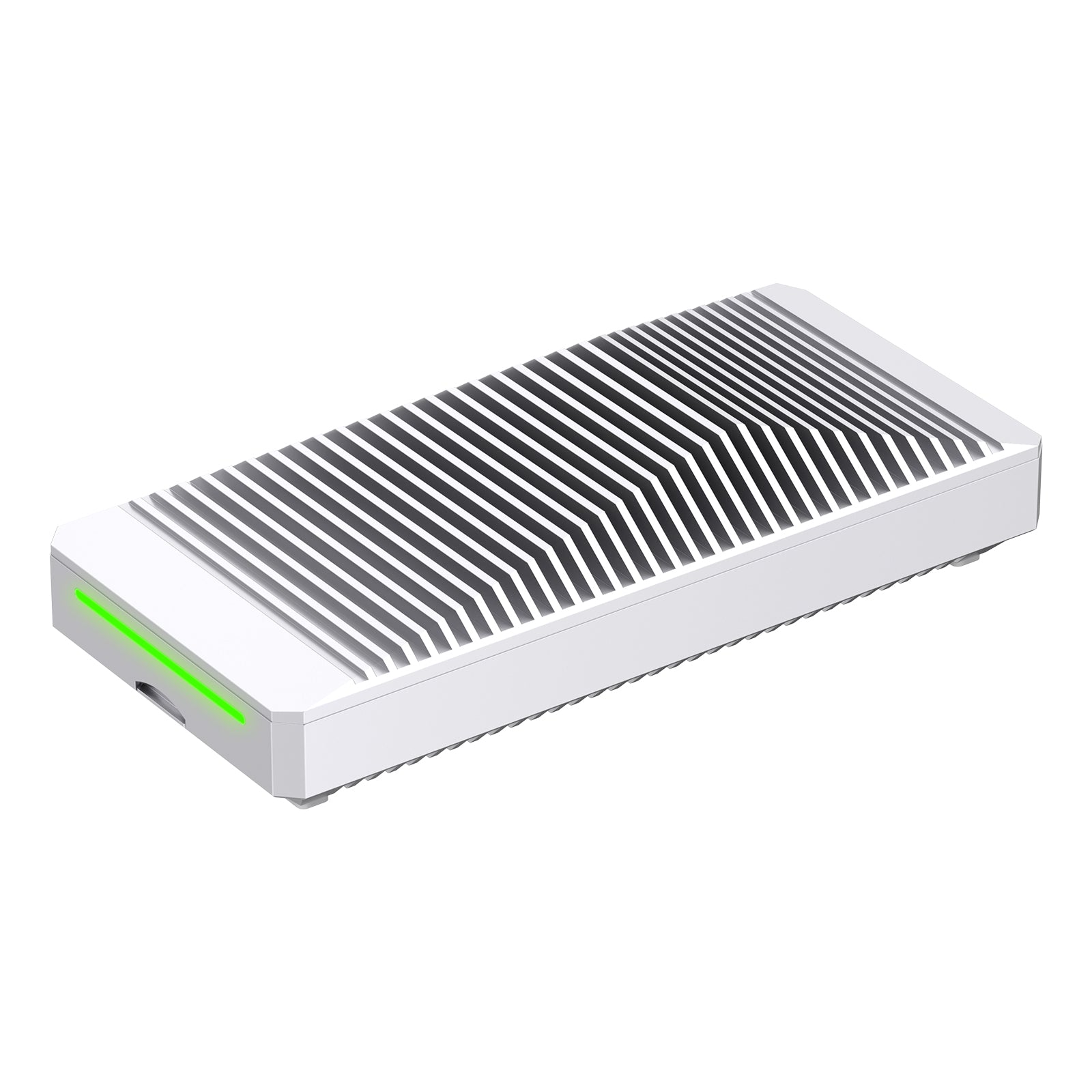

Qwiizlab Fanless 80Gbps NVMe Enclosure with Aluminum Chassis, Compatible with Thunderbolt 5, Backward compatible with Thunderblot 4/USB4/UBS3.2/3.1/3.0, Support M.2 SSD up to 8TB (Silver)
About this item：

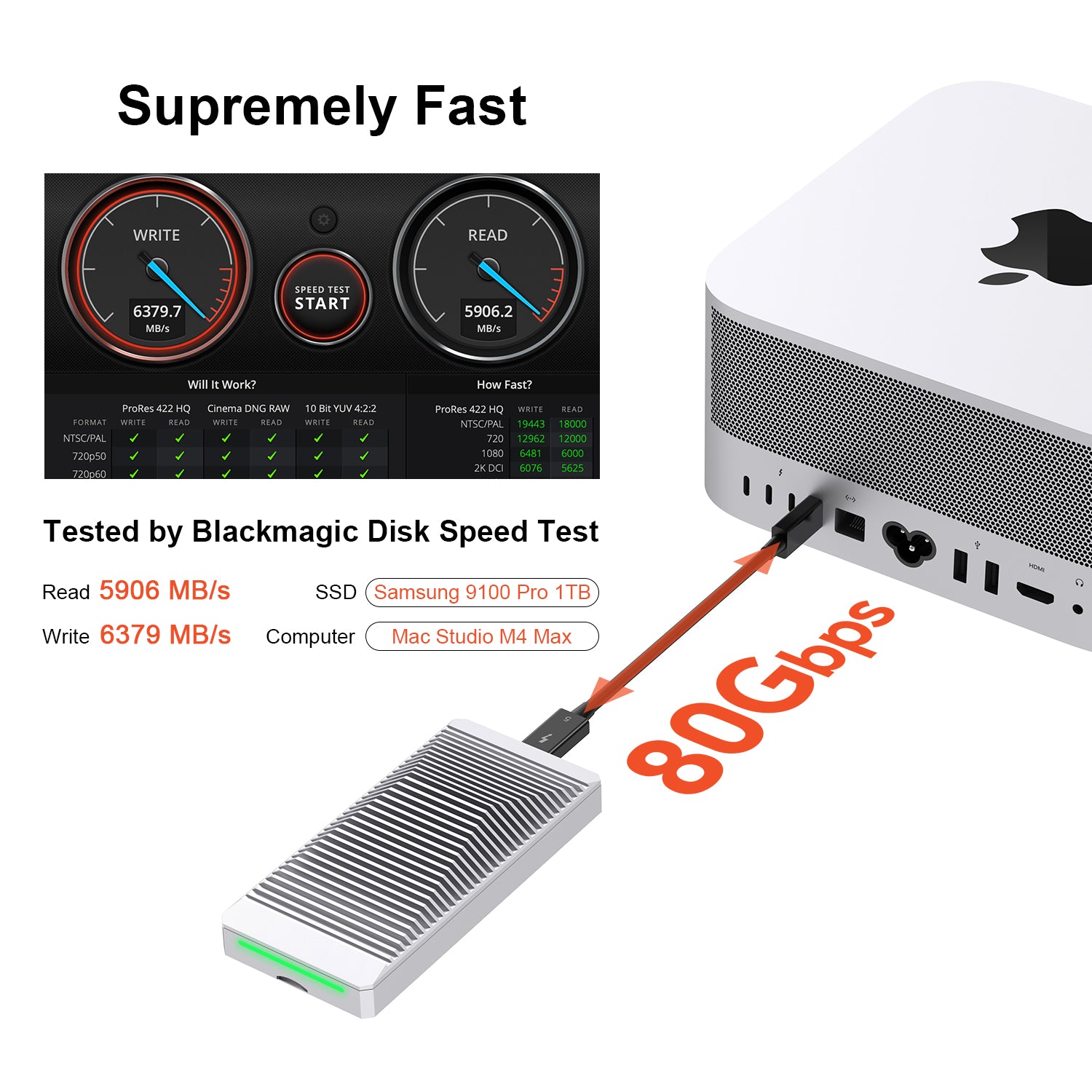

- Blazing-fast Speeds: Powered by the Intel JHL9480 controller, it delivers data transfers via a Thunderbolt 5 port, reaching up to 80Gbps and exceeding 6000 MB/s.
- Comprehensive Compatibility: Thanks to its Realtek RTD9210 chip, it offers backward compatibility with Thunderbolt 4 and USB4/3.2/3.1/3.0, ensuring broad connectivity.

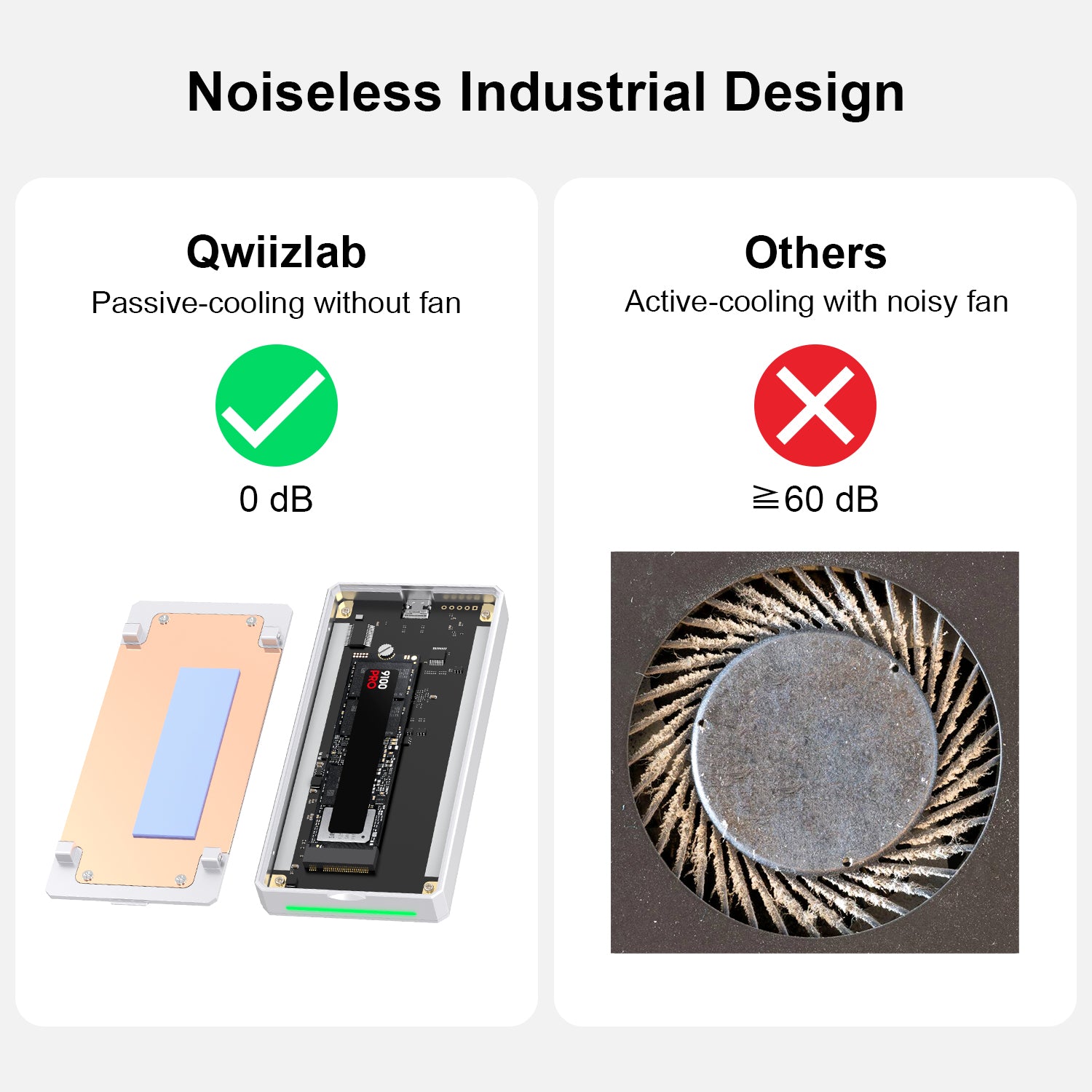

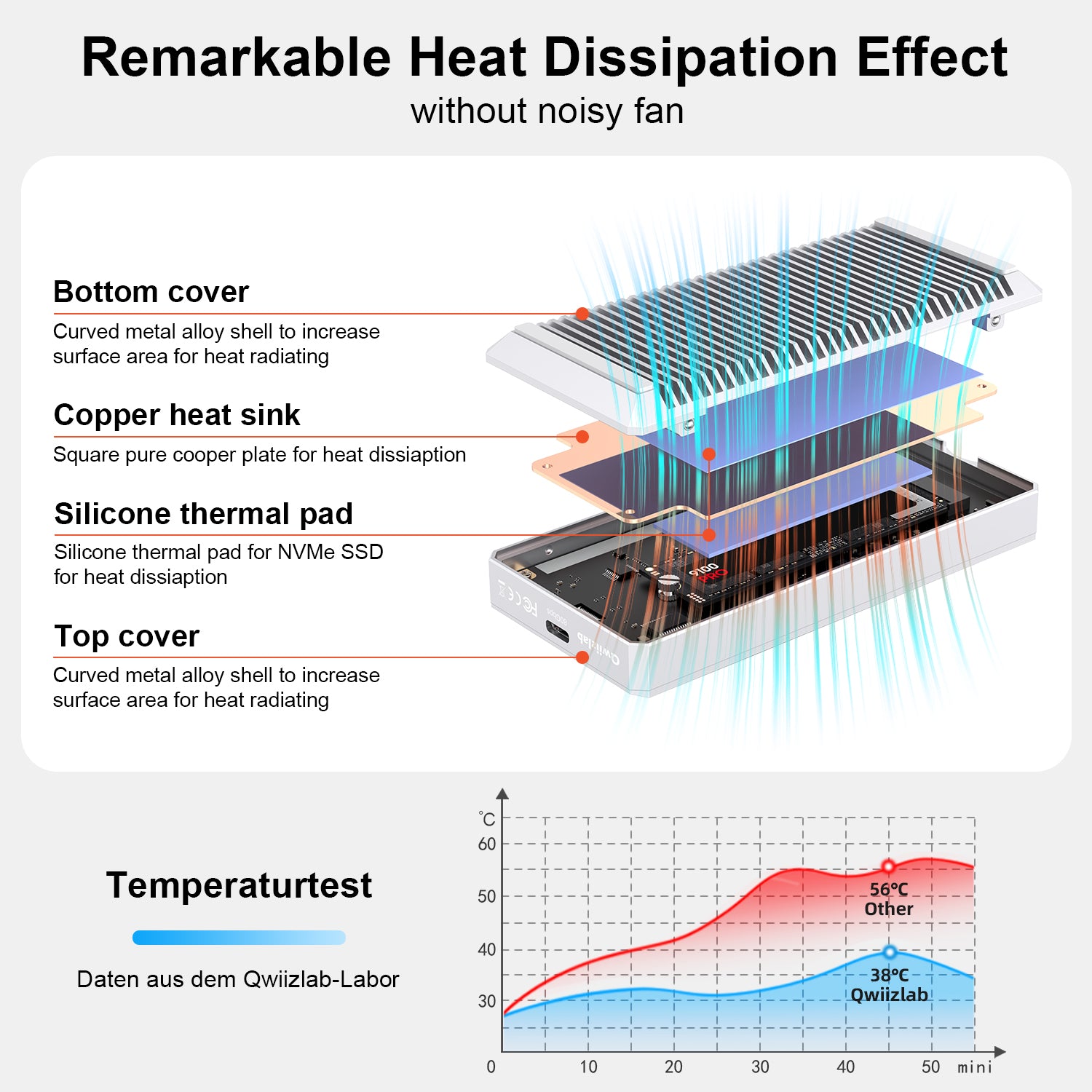

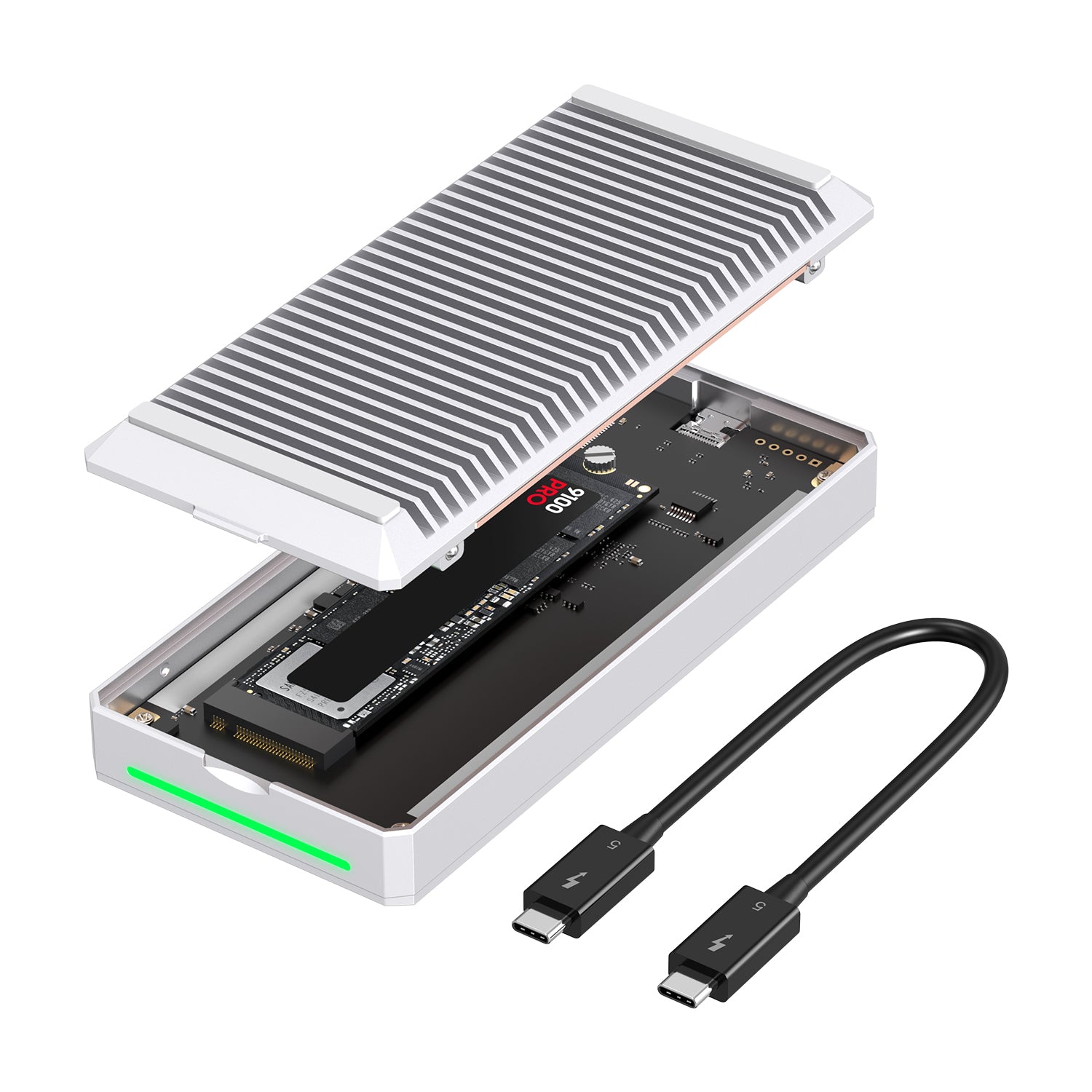

- Rugged and Fanless: Encased in a sleek and grooved aluminum body, it stays cool without a fan, using internal copper plate to dissipates the heat from the M.2 NVMe SSD.
-

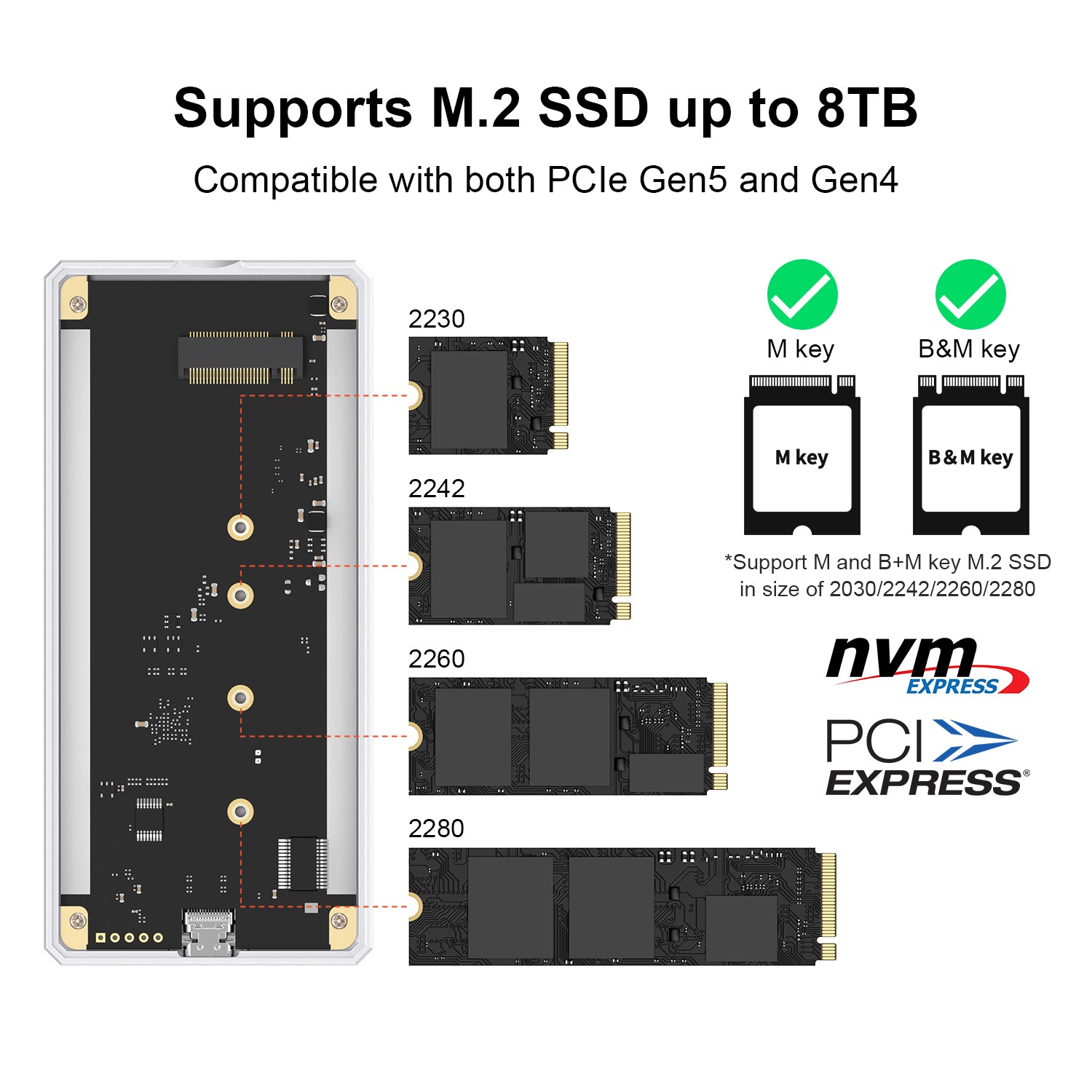

Note This Before You Buy: This product does not include any SSD. It supports both PCIe Gen 5 and Gen 4 NVMe SSD in size of 2280/2260/2242/2230mm up to 8TB capacity.

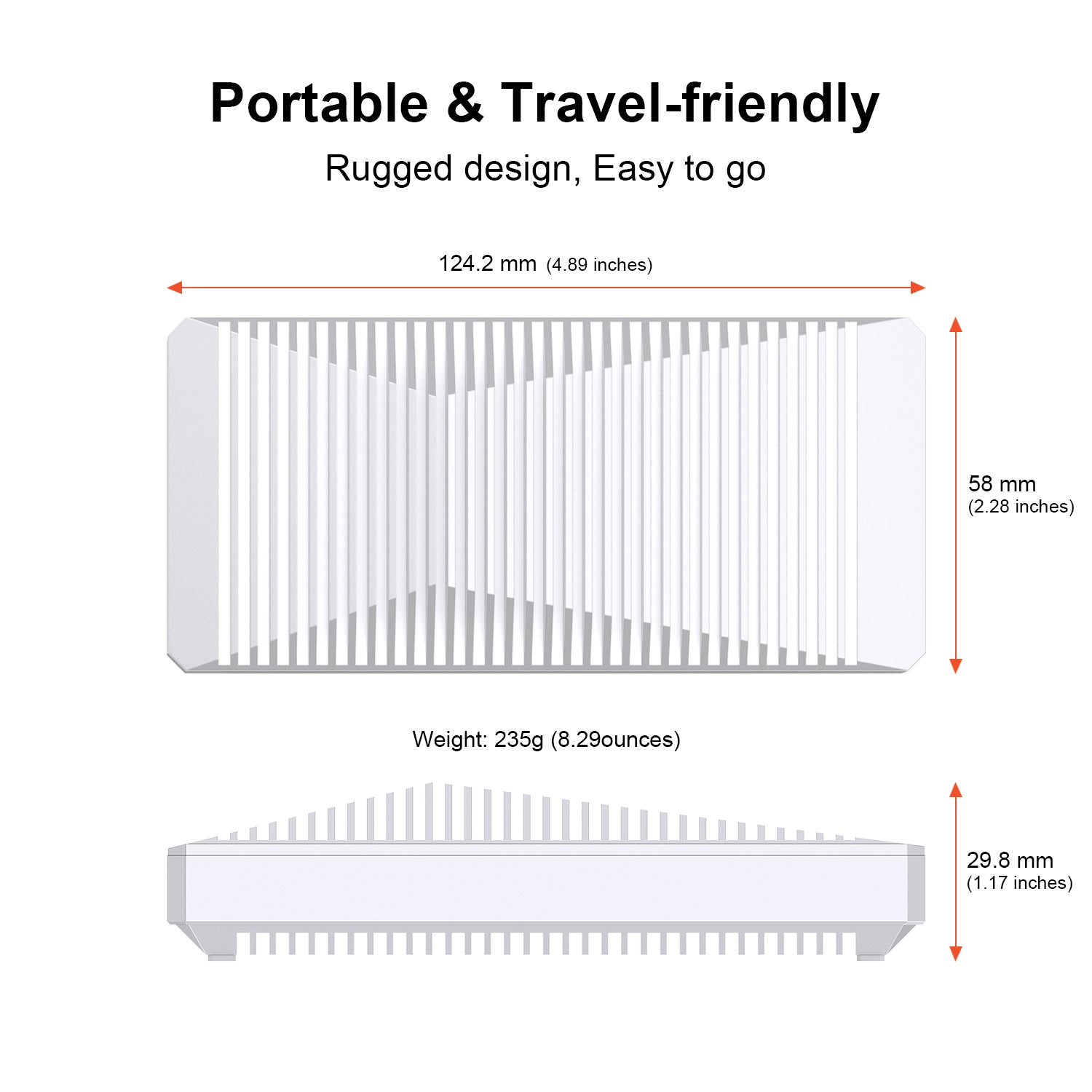

Dimensions：
-
125*65*23.5 mm / 4.92*2.55*0.92 inches
Weight：
-
0.250 kg / 0.55 pounds / 8.82 ounces
Interface：
- M.2 Slot * 1
- Thunderbolt 5*1

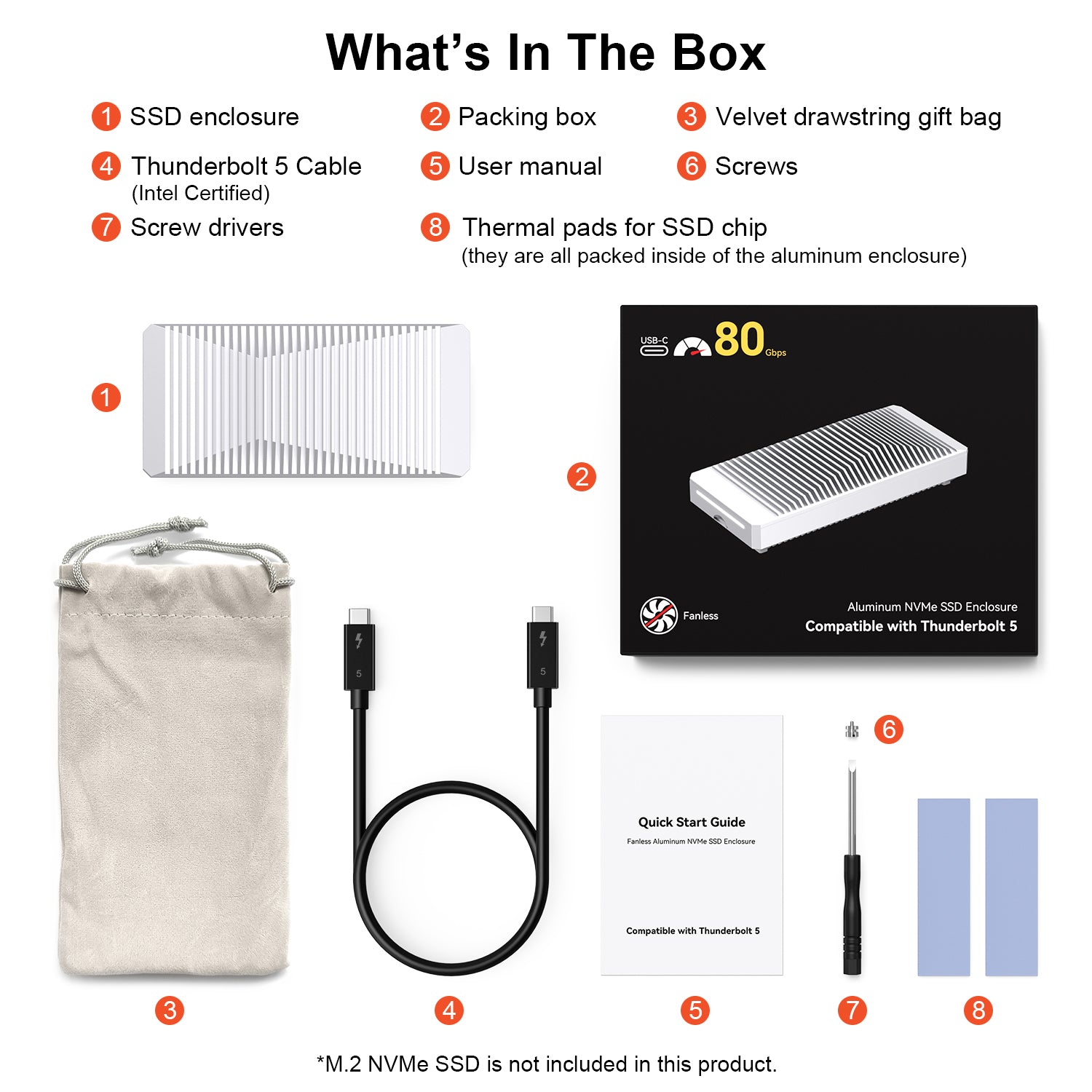

Packing List：
- 80Gbps NVMe enclosure (model name ES41TR)

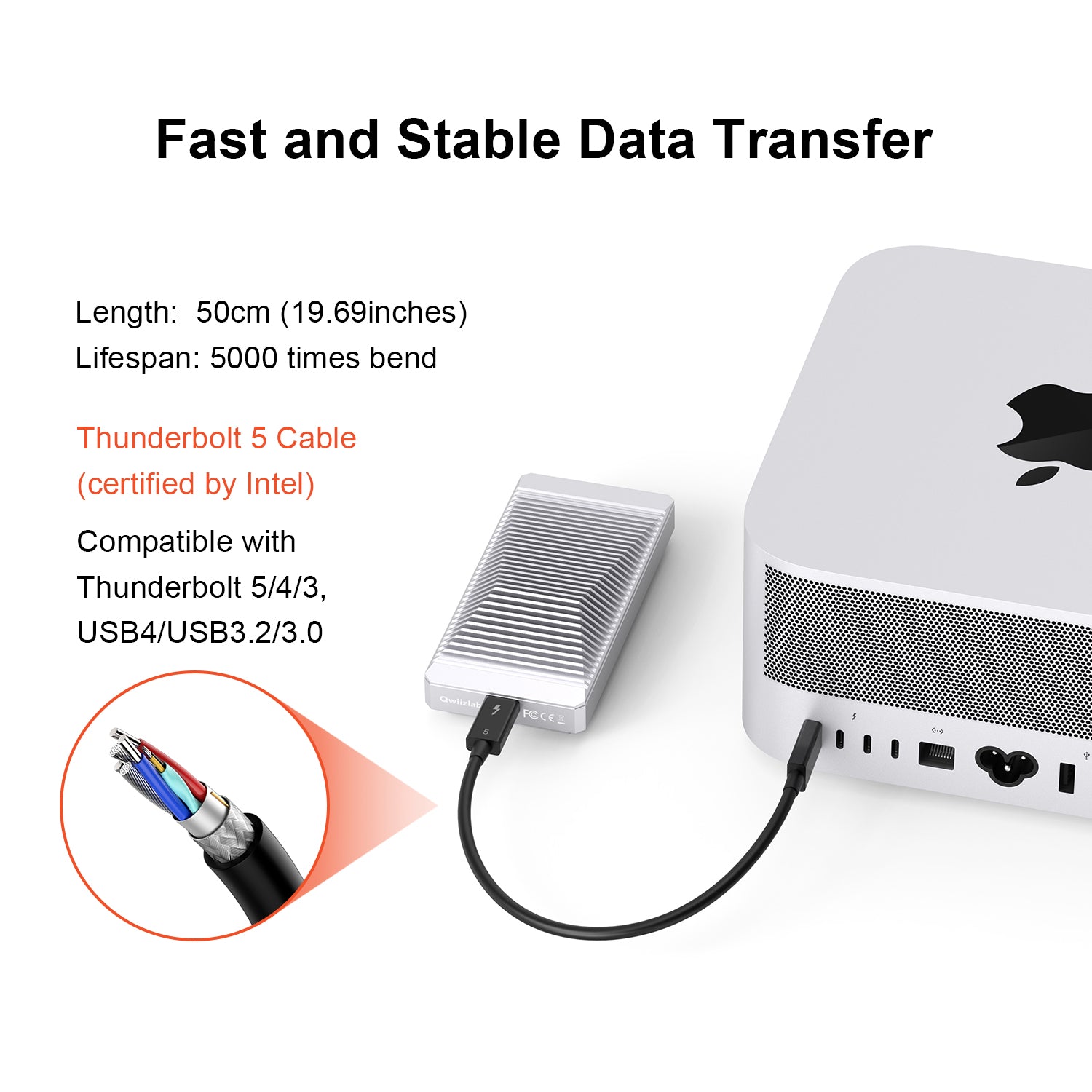

- Thunderbolt 5 cable (Intel-certified)
- Silicone thermal pads for SSD

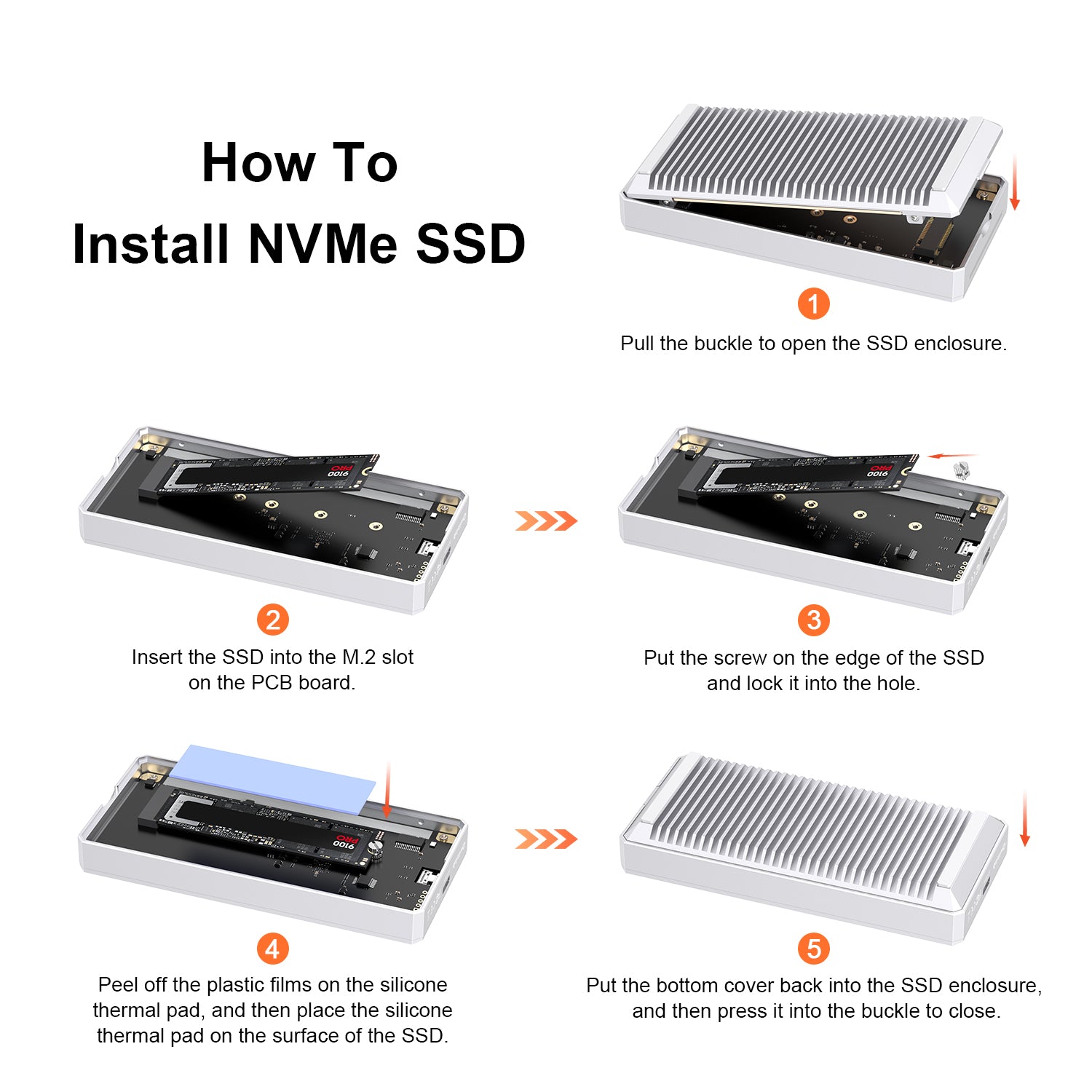

- Screw driver and screw for installing SSD
- Quick Start Guide
- Velvet drawstring gift bag
Recommended PCIe Gen 4 and Gen 5 NVMe SSD (to be updated):
- acer: Predator GM7/GM7000, FA100/FA200
- Corsair: MP600 Elite/MP600 CORE XT/MP600 PRO NH, MP700 Elite/MP700 PRO
- Crucial: P510/P310, P5/P5 Plus, P3/P3 Plus, P2/P2 Plus, T500/T705/T710
- Fikwot: FN950/FN955, FX910/FX991
- Lexar: NM710/NM760/NM790, NQ710/NQ760/NQ780/NQ790
- Inland: TN450, TN470
- Kingston: NV3, NV2, NV1, DC1000B, KC3000, A400
- KLEVV: CRAS C910
- ORICO: e7400, O7000/OG7000, IG740PRO
- PNY: CS1030/CS2230/CS2241/CS2150
- Samsung: 9100 Pro/990 Pro/990 EVO/990 EVO Plus, 980 Pro/980, 970 Pro/970 EVO/970 EVO Plus/970
- Seagate: BarraCuda Q5/510, FireCuda 520/510, IronWolf 525, ZP1000GP3A1011/ZP2000GP3A1001
- SK Hynix: Platinum P51/P41, Gold P31
- Silicon Power: A60, UD90, US75
- TEAMGROUP: T-Force G50, MP44L, MP33/MP33 PRO, MS30
-
Western Digital: Black SN8100/SN850X/SN850, Black SN7100/SN770/SN750, Blue SN5000, SN580/SN570/SN550, Green SN350, Red SN700
